External Scaff Coupler - 48mm Pipe

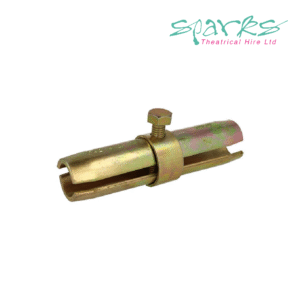

Internal coupler for joining two lengths of 48mmØ scaffold tube end to end.

The Doughty Hanging Clamp is supplied fitted with an Eye nut. This Clamp is ideal for suspending wire hung loads. Manufactured from high tensile Aluminium Extrusion. SWL: 340 Kg Tube Diameters: 48 to 51mm Width: 50mm Fixings: M12 Eye Nut Weight: 0.84 Kg

Swivel clamp for 48mmØ Scaffold Tube

A high tensile extruded aluminium trigger clamp that is suitable for 48mm to 51mm diameter tubes. Has a WLL of 200Kg and is 30mm wide, factory fitted with a 29mm Spigot receiver designed to accept a 28mm diameter spigot. Supplied with lynch pin for secondary locking allowing 360 degree rotation, this clamp is designed predominantly for use in the TV/Film industry and is often used with Drop Arms and Pantographs.

Aluminium Pipe to Pipe coupler SWL 200kg (vertical loads only!)

A heavy duty steel tube joiner used to join 48mm tubes externally.

Manufactured from high tensile Aluminium Extrusion. SWL: 750 Kg Tube Diameters: 48 to 51mm Width: 50mm Tube Centres: 110mm Weight: 1.33 Kg

The Doughty Swivel Coupler provides a firm fixing between adjacent bars whilst allowing 360 degrees of movement. Manufactured from high tensile Aluminium Extrusion. SWL: 750 Kg Tube Diameters: 48 to 51mm Width: 50mm Tube Centres: 110mm Weight: 1.33 Kg

A steel double ended parallel hook clamp available in various sizes. Zinc plated finish.

A steel double ended 90 degree twist hook clamp suitable for 48mm to 51mm diameter tube available in various sizes. Zinc plated finish.

Rigid 90° clamp for 48mm scaffold tube.
