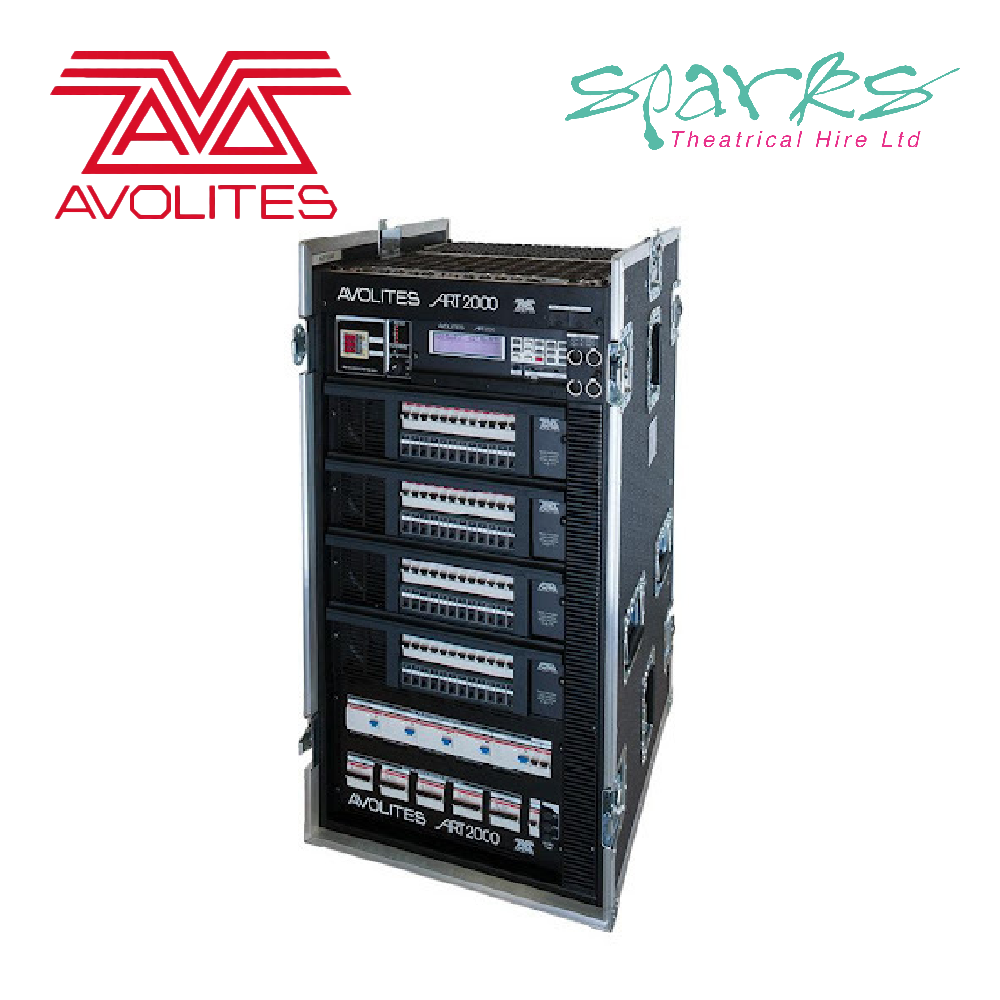

Avolites Art 2000 48 Way Dimmer Rack

The ART2000 system provides a complete solution to Dimming and Moving Light Power distribution. You no longer need to have separate mains distribution making set up times faster and reducing the number of individual components needed to put a show together. The ART2000 controls up to 48 individual channels. Up to 4 modules can be installed

Up to 20 Multicore output connectors ensure that cabling will be as simple and reliable as possible. Each channel of each multicore output connector can be patched to any dimmer output using the top hot-patch. The hotpatch has a lamp test indicator making faults easy to find when a single dimmer channel powers more than one light fixture.

The ‘Load Check’ indicators for each dimmer module or relay module channel give a sure indication that a load is present and the test faders on each dimmer channel or relay channel allow you to quickly check what’s connected without having the use of a console.

The design incorporates full monitoring and status feedback via the backlit LCD display. For simple events you can operate without a console by setting up a dimmer state on the test faders, or you can record 12 internal memories for replaying a simple show.

Other features include full DMX patch and merge (2 DMX lines), dimmer curve and output limit selection per channel, power OK indicators, optional volt and amp metering and optional RCD protection.

Supplied as standard as a 48-Way Dimmer Rack.
Relay and Hot Power modules are available, please contact us for a quote.

Technical Specifications

Power Inlet: 400A Powerlock w/ Loop Output
Outlets: 20x Lectriflex Output Connectors, patchable
Max load per channel: 16A
